Features

Specifications

Type: Fluid Bed Drying Equipment

Model Number: ZLG

Condition: New

Voltage: 220v/380v

Power: Based

Dimension(L*W*H): Varied

Warranty: 1 Year

Weight: 4T-110T

After-sales Service Provided: Engineers Available To Service Machinery Overseas

Certification: CE ISO

Name: Vibration Fluidized Bed Dryer

Application: Chemical

Material: Stainless Steel

Installation: Engineer Guide

Basic Infomation

Certification: CE ISO

Model Number: ZLG

Payment & Shipping Terms

Product Description

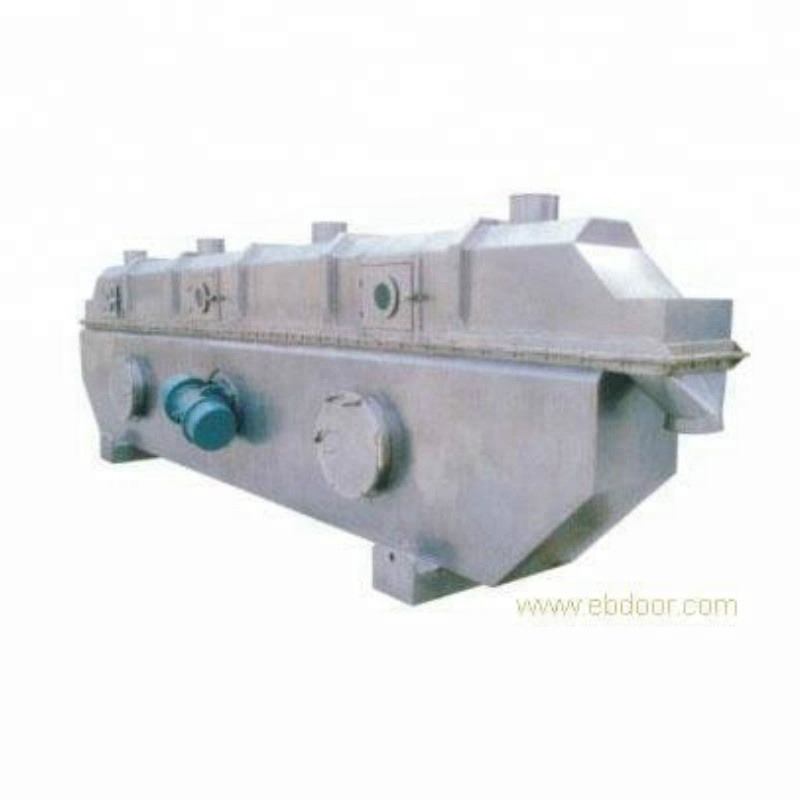

Name:ZLG series vibration fluidized bed dryer

Keywords: ZLG series vibration fluidized bed dryer

Description: The material has been feed into the machine, under the dual function of the vibration and air flow, the material move along the fluidized bed as throwing forward continuously. Hot air upward through the fluidized bed and wet materials.

Principles:

The material has been feed into the machine, under the dual function of the vibration and air flow, the material move along the fluidized bed as throwing forward continuously. Hot air upward through the fluidized bed and wet

materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the mouth. materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the mouth.materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the mouth.

materials from the heat after the exchange, after the cyclone dust emissions from dry materials from discharging from the mouth.

Product Characteristics:

1.Materials have been heated evenly, full exchanged the heat. It is a process of large intensity of drying.

2.The vibration motor drive has been used, with the advantages of smooth operation, easy maintenance, low noise, long life.

3.It flows stability, with no dead angle and blown through phenomenon.

4.It is adjustable, wide adaptation. The moving speed of the bed depth and the material in the dryer can achieve stepless adjustment by the changes of the amplitude.

5.It makes small damage to the surface of the material, can be used for the drying of the fragile materials and will not affect the work results if the particles are irregular.

6.It uses full closed structure; effectively prevent the cross-contamination of the materials and air, clean operation environment.

7.Materials drying time is basic equality, residence time is short, bed depth is small, usually 2 ~ 5cm.

Application Examples:

Inorganic: persulfate; bleaching powder concentrated; sodium metesilicate; quartz sand; sodium perborate; activated carbon; sulfate; sodium chlorate; borax; boric acid, potassium bromide, sodium bromide.

Organic: dihydroxybenzene, oxalic acid, hydroquinone, fumaric acid, gulonic acid, o-dihydroxybenzne; m-dihydroxybenzene; coke powder, tartaric acid, cyanuric acid, G salt, R salt.

Food and Feed Additives: isolated soy protein, glutamate, caramel pigment, yeast, citric acid, sodium citrate, glucose, lactose, sugar.

Pesticides: quan wei chu wo ling ke li ji

Chemical Agents: sodium carbonateperoxide.

Polymers: PE, polyacrylamide

Application Range:

It is can be used for drying or cooling process, for the uneasily fluidized products because of large particles or irregular particles, or that require a lower fluidization rate in order to maintain the integrity of the particles and the drying of easy-to-adhesive, temperature-sensitive products and the surface water removal of the crystal water-containing materials.

Technic Parameter:

Model	Bed Size		Overall Dimension			Vibration Motor (kW)	Weight (kg)	Water Evaporation (kg/h)
ZLG	A1(mm)	B2(mm)	A	B	C	Vibration Motor (kW)	Weight (kg)	Water Evaporation (kg/h)
ZLG3×30	300	3000	3505	1830	890	0.5×2	1240	30-50
ZLG3×45	300	4500	5005	1830	1116	0.75×2	1570	45-70
ZLG6×45	600	4500	5005	1940	1286	1.1×2	1967	90-150
ZLG6×60	600	6000	6510	1940	1286	1.1×2	2743	120-200
ZLG6×75	600	7500	8010	1940	1286	1.1×2	2886	150-250
ZLG9×60	900	6000	6510	2110	1830	2.2×2	3540	180-300
ZLG9×75	900	7500	8010	2110	1830	2.2×2	4219	220-370
ZLG12×75	1200	7500	8010	2450	2400	3×2	5223	300-500
ZLG15×75	1500	7500	8010	2570	2850	4×2	6426	370-620
ZLG18×80	1800	8000	8520	3100	3250	5.5×2	8600	450-700
