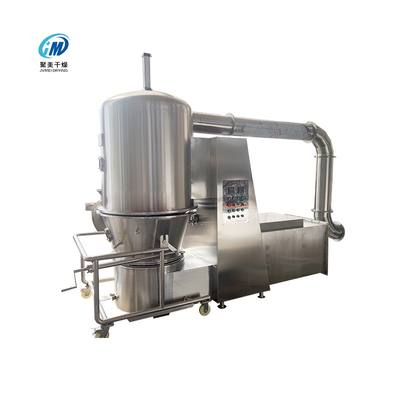

China Supplier Low Cost High Efficiency Professional Fluid Bed Dryer Boiling Drying Machine For Granules Powder

1.0 Pieces
MOQ
China Supplier Low Cost High Efficiency Professional Fluid Bed Dryer Boiling Drying Machine For Granules Powder
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: Custom
Power: Custom, 7.5Kw-75Kw
Dimension(L*W*H): Custom
Key Selling Points: Easy To Operate
Warranty: 1 Year
Weight (KG): 500
Applicable Industries: Food & Beverage Factory, Farms, Food & Beverage Shops
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, PLC
Heating Method: Steam Heating
Material: SUS304
Product Name: High Efficiency Fluidizing Drying Machine
Keywords: Dryer Drying Machine
Feature: High Efficiency Low Cost
MOQ: 1 Set
Delivery Time: 15-45 Days
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description

Working Principle

Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.


Features

1. The structure of fluidization bed is of round so as to avoid dead corner. 2. Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and forming canal of flow. 3. The granule is discharged through the method of turning over. It is very convenient and full. The discharged system can be designed as request too. 4. It is operated at he conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity with the requirements of GMP. 5. The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.


Application scope

1.Used for drying granulating particles of screw extrusion granulator, swing granulator and high-speed wet mixing granulator. 2. Suitable for drying wet block or powder raw materials in pharmaceutical, food, feed, chemical and other industries. 3. Large particles, small lumps and sticky materials. 4. Materials whose volume may change in the drying process.
item
spec
capacity
kg
60
100
200
500
1000
fan
velocity
m3/h
2361
3488
6032
10800
15000
air pressure
mmH20
594
533
787
950
1200
power
kw
7.5
11
22
45
75
stirring power
kw
0.55
0.55
0.75
1.5
2.2
stirring speed
rpm
11
consume of steam
kg/h
141
170
282
451
800
time of operation
min
15-30 (depends on material)
height of main machine
mm
2700
2900
3300
4200
5800






01
Stainless Steel Material, One Year Warranty


02
Customized Models Available






03
Smooth Running Effect

1、Q: Is Changzhou Jumei drying equipment Co.,Ltd. a manufacturer , trading company or a third party?

A:We are a manufacturer and our company was foundedin 2013.

2、Q:Where is your factory?

A: Jumei is located in Changzhou City，Jiangsu Prov-ince,China, which is located in the Yangtze River Delta,the economic center of China.

3、Q:How can l get to your factory?

A: You can fly directly to Shanghai Pudong or HongqiaoInternational Airport,and then take the high-speed rail-way to Changzhou station (it's only one hour by train fromShanghai to Changzhou). We arrange to meet you atChangzhou station to our company. Our company isabout 30 kilometers away from Changzhou station.
If you are in China now, you can take a plane to Chang-zhou Benniu airport, or take a train or bus to Changzhoudirectly.
We sincerely welcome you to visit our company at anytime.
