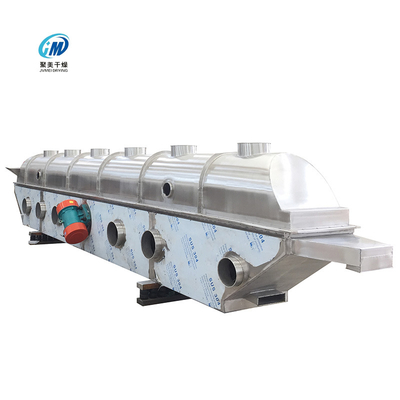

Medicine Processing ZLG Series High Efficiency Continuous Vibrating Fluid Bed Food Dryer Granulator

1.0 Pieces
MOQ
Medicine Processing ZLG Series High Efficiency Continuous Vibrating Fluid Bed Food Dryer Granulator
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing
Condition: New
Voltage: Custom,220v/380v
Power: Custom
Dimension(L*W*H): Custom
Key Selling Points: Automatic
Warranty: 1 Year
Weight (KG): 800
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops
Showroom Location: None
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, PLC
Heating Method: Steam Heating
Material: SUS304, SUS316L, SUS304
Product Name: Vibrating Fluidized Bed Dryer
Advantage: Easy Operation High Efficiency
Function: Food Vegetable Fruit Dehydrator
MOQ: 1 Set
Dryig Process: Continuous Automatic Drying
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description

Product Features

1. Uniform fluidization state, no dead angle and fracture phenomenon, dry and cool products. 2. Good adjustability and wide applicability The thickness of raw materials and the speed of raw materials moving in the machine and the change of vibration range can be graded. 3. Small damage to the surface of the material, can be used for easy to break the material, if the particles are not normal, it can not play the process effect. 4. Fully sealed structure, can effectively prevent the cross contamination of raw materials and clean working environment. 5. High mechanical and heat, good energy-saving effect. Compared with common dryer, it can save 30-60% of energy.


Working Principle

Raw mate rial is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power The hot air passes through fluidized—bed and exchange with raw materials。damp，then the wet air is dusted by cyclone separator and exhausted from air outlet，the d ried material is discharged through finished material outlet.


Application

It is applicable for drying，cooling of powder or granule state materials，such as citric acid，monosodiurn glutamate，borax，ammonium sulphur,compound fertilizer，piece of radish，bean，lees，seed，mine reside and sugar in chemical， pharmaceutlcal，foodstuff，grain，mine and so on industries.
Size
Area of Fluidized bed (M2)
Temperature of inlet air（℃）
Temperature of outlet (°C)
Capacity to vapormoisture (kg)
Vibration motor
Model
Power Kw
GZQ3x0.30
0.9
70-140
40-70
20-35
ZDS31-6
0.8x2
GZQ4.5x0.30
1.35
70-140
40-70
35-50
ZDS31-6
0.8x2
GZQ4.5x0.45
2.025
70-140
40-70
50-70
ZDS32-6
1.1x2
GZQ4.5x0.60
2.7
70-140
40-70
70-90
ZDS32-6
1.1x2
GZQ6x0.45
2.7
70-140
40-70
80-100
ZDS41-6
1.5x2
GZQ6x0.60
3.6
70-140
40-70
100-130
ZDS41-6
1.5x2
GZQ6x0.75
4.5
70-140
40-70
120-140
ZDS42-6
2.2x2
GZQ6x0.9
5.4
70-140
40»70
140-170
ZDS42-6
2.2x2
GZQ7.5x0.60
4.5
70-140
40-70
130-150
ZDS42-6
2.2x2
GZQ7.5x0.75
5.625
70-140
40-70
150-180
ZDS51-6
3.0x2
GZQ7.5x0.9
6.75
70-140
40-70
160-210
ZDS51-6
3.0x2
GZQ7.5x1.2
9
70-140
40-70
200-260
ZDS51-6
3.0x2






01
Stainless Steel Material, One Year Warranty


02
Customized Models Available


03
Smooth Running Effect
