Continuous Drying Machine ZLG Series Vibration Fluid Bed Dryer Equipment For Drying Crumb Bread

1.0 Sets
MOQ
Continuous Drying Machine ZLG Series Vibration Fluid Bed Dryer Equipment For Drying Crumb Bread
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Industry, Chemistry, Food, Pharmaceutical Industry
Condition: New
Voltage: 220v/380v/Customized
Power: See Technical Parameters List
Dimension(L*W*H): See Technical Parameters List
Key Selling Points: Multifunctional
Warranty: 1 Year
Weight (KG): 1000
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Pump, Gear, Motor, Gearbox, Engine, Pressure Vessel
Material: SUS304, SUS316, Carbon Steel/SUS304/SUS316
Name: Equipment For Drying Crumb Bread
Raw Material: Multiple Material
Usage: Reduce Material's Moisture
Feature: Continuous Drying Machine
Heating Source: Steam Oil Gas
Color: Customer's Request
MOQ: 1set
After-sales Service Provided: Engineers Available To Service Machinery Overseas
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
Certification: CE ISO
Basic Infomation
Certification: CE ISO
Payment & Shipping Terms
Packaging Details: Standard exported wooden case for Equipment for Drying Crumb Bread
Supply Ability: 20 Set/Sets per Month Equipment for Drying Crumb Bread
Product Description

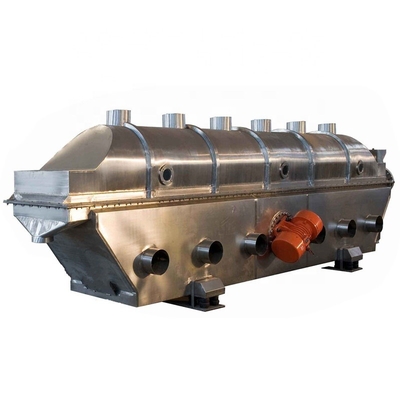

ZLG Series Vibration Fluid Bed Dryer Equipment for Drying Crumb Bread
Product Description

Evenly Heated
Good Drying Effect
Low Noise And Long Life
Totally Enclosed Structure
Energy Conservation
Environment Protection
Easy Operation And Control
Production Process Simplification

Brief Introduction:
Vibrating fluidized bed dryer is a kind of strengthened drying device with special purpose, which is usually used for the final drying of materials. Due to the fluidization of materials by mechanical vibration in the drying process, it is not only beneficial to the turbulent boundary layer, but also to ensure that the drying equipment works under relatively stable hydrodynamic conditions. In addition to good drying function, the equipment can also be equipped with granulation, cooling, screening and conveying processes according to the process requirements. At present, it has been widely used in sugar making, medicine, chemical fertilizer, chemical industry, plastics, dairy products, salt industry, mining and metallurgy and other industrial sectors. This technology is basically mature and has formed series.

Characteristics:

1. The raw material is heated evenly, the heat exchange is sufficient, the drying intensity is high, and the energy saving is 30% - 50% compared with the ordinary dryer; 2. The vibration source is driven by vibration motor, which has the advantages of balanced operation, convenient maintenance, low noise and long service life; 3. There is no dead space and blow through phenomenon, and uniform dry, cooled and humidified products can be obtained; 4. Good adjustability, wide adaptability and stepless adjustment; 5. The fully enclosed structure can effectively prevent the cross infection between materials and the outside air, and the working environment is clean; 6. Vibration is helpful to disperse materials and accelerate drying speed; 7. The product has good uniformity, fluidity and solubility. The higher the purity, the better the quality. 8. The production process is simplified and the operation control is convenient. For the liquid with moisture content of 40-60% (up to 90% for special materials), it can be dried into powder products at one time without crushing and screening after drying, so as to reduce the production process and improve the purity of products.

Application Fields:

1. Pharmaceutical and Chemical Industry: Various tablets, boric acid, borax, various additives such as catechol.
2. Food and Building Materials Industry: Distiller's grains, monosodium glutamate, sugar, salt, slag, bean seed, etc.
3. Chemical Products: Polyaluminum chloride, disperse dyes, reactive dyes, organic catalysts, silica, washing powder, zinc sulfate, silica, sodium metasilicate, potassium fluoride, calcium carbonate, potassium sulfate, inorganic catalyst, various waste liquid, etc.
4. Food Industry: Amino acids, vitamins, egg powder, bone meal, condiment, protein, milk powder, pig blood powder, soy sauce powder, coffee, tea, glucose, potassium sorbate, pectin, flavor, spices, vegetable juice, yeast, starch, etc.
5. Ceramics: Alumina, zirconia, magnesium oxide, titanium oxide, magnesium titanate, ceramic clay, various ferrite and metal oxides, etc.
6. Others: Mineral powder, metal powder, steel sand, bait, furfural, silica sand, toner, pottery, glutamic acid, quartz, grinding materials, fertilizer, forage, bone meal, mica asbestos, etc.

Raw Material Feature:
1: Material particles are too big or irregular need to fluid.
2: Lower speed fluidization is needed to keep particles complete.
3: Materials are sticky or sensitive to temperature.
Product More Pictures
Customer Site:
Working Principle
At present, the most widely used horizontal vibrating fluidized bed dryer has similar shape and basic structure to ordinary horizontal fluidized bed dryer. The utility model is provided with a spring on both sides of the machine body and vibrates slightly on one side of the motor body. The material fluidizes by mechanical vibration and perforated air flow, and moves forward under the action of vibration. The machine generates exciting force by the throwing of vibration motor. The material jumps forward under the action of the exciting force in the given direction. At the same time, the hot air under the bed makes the material in fluidization state, and the material particles fully contact with the hot air, so as to achieve the ideal effect. The material enters the machine from the feed port, and under the action of vibration force, the material is thrown along the horizontal direction and moves forward continuously. The hot air flows upward through the fluidized bed to exchange heat with the wet materials. The wet air is discharged from the air outlet after being removed by the cyclone separator, and the dry material is discharged from the discharge port. It has very outstanding advantages: 1. Uniform fluidization can be obtained at very low gas velocity, which greatly reduces energy consumption, inter particle wear and dust entrainment; 2. The residence time distribution of the material is uniform, which can be regarded as "piston flow", and the residence time is easy to adjust and control, so the ideal moisture content of the product can be obtained.
Product Parameters
Model
Area of fluidized bed (m2)
Temp of inlet air
(℃ )
Temp of outlet air (℃ )
Capacity of evaporation (kg/h)
Vibration motor
Weight
(kg)
Model
Power (kw)
ZLG3x0.30
0.9






70~140





40~70
20~35
ZDS31-6
0.8x2
1250
ZLG4.5x0.30
1.35
35~50
ZDS31-6
0.8x2
1650
ZLG4.5x0.45
2.025
50~70
ZDS32-6
1.1x2
1670
ZLG4.5x0.60
2.7
70~90
ZDS32-6
1.1x2
1910
ZLG6x0.45
2.7
80~100
ZDS41-6
1.5x2
2100
ZLG6x0.60
3.6
100~130
ZDS41-6
1.5x2
2410
ZLG6x0.75
4.5
120~140
ZDS42-6
2.2x2
2340
ZLG6x0.90
5.4
140~170
ZDS42-6
2.2x2
3160
ZLG7.5x0.60
4.5
130~150
ZDS42-6
2.2x2
3200
ZLG7.5x0.75
5.625
150~180
ZDS51-6
3.0x2
3600
ZLG7.5x0.90
6.75
160~21
ZDS51-6
3.0x2
4140
ZLG7.5x1.20
9.0
200~280
ZDS51-6
3.0x2
5190
Product Packaging
Company Profile

Our Services:

Pre-Service:
1. 24 hours online consult and service
2. Introduce the product to the customer in detail, answer the question raised by customer carefully;
3. Make different plans for choice according to the needs and requirements of customers;
After-sale Service:
1. Help to install and debug the equipment;
2. Provide 24 hours technical support by e-mail or phone;
3. Keep sufficient replaceable spare parts;
4. Help customers solve any other questions about products or other aspect;
5. Establish long-term and friendly relationship.
Service Commitment:
1. We will provide one-year warranty period to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3. Send technicians to the job site for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
Our Honor:
Customers Visiting:
LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of pharmaceutical, chemical and packaging machinery. Our products include Vibration fluid bed dryer, Spray dryer, Belt dryer, Paddle dryer, Rotary dryer, Vacuum oven dryer, Hot air circulation oven dryer, Powder and Granulator Packing machine and so on.

Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality medical machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.

Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.
FAQ
1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying

2. What certificates do you have?
We can provide CE, ISO 9001, etc.

3. What is the warranty period of the equipment?
Normally 1 year warranty.

4. Can we visit your factory?
Of course, we sincerely invite you to visit. If it's not convenient for you, we can also arrange teleconference video.

5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site. You can also send your materials directly to our factory.

6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

7. How long is the construction period?
It's about 30 working days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.

8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
